SOM Blue Heaven L30Pw / R-LB (19) AE85 Jigging Reel Pw Model (Right Handle)

  • Sale
  • Regular price $960.00
  • 1 available
Shipping calculated at checkout.



Studio Ocean Mark Blue Heaven L30Pw / R-LB (19) AE85 (Right Handle)

Little Monster Jr. lineup completed - The strongest 30 with a large-diameter gear and line capacity of the upper class in spite of its lightweight and compact design .
Starting with light jigging, which is the main target, we also cover mid-deep sea jigging, which is a new size category.

SOM Blog Field Note: BHL30 Power Gear Added

DESIGN

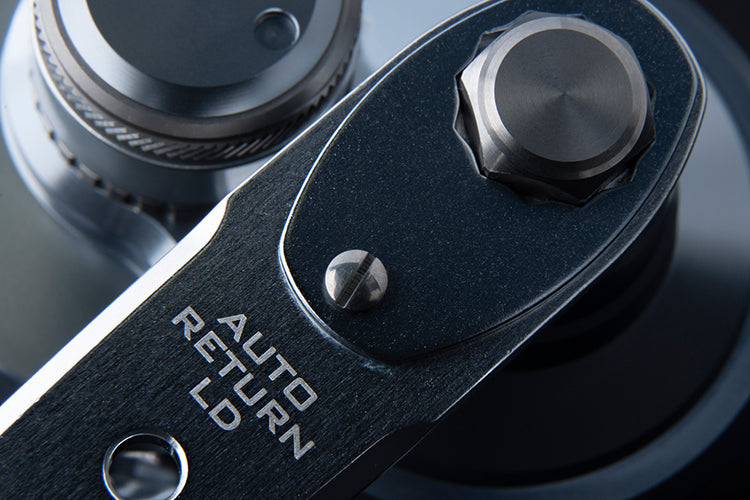

Auto Return LD (utility model registered)

The drag lever is linked by rotating the handle and automatically returns to the strike position.
It can also be used for root fish aiming at the bottom where clutch type reels such as jigger and saltiga were advantageous, and for hairtail aiming for aggressive fall bite. Rather, because it is a lever drag, you can adjust the fall speed of the jig between FREE and MIN and bring it to the bite.

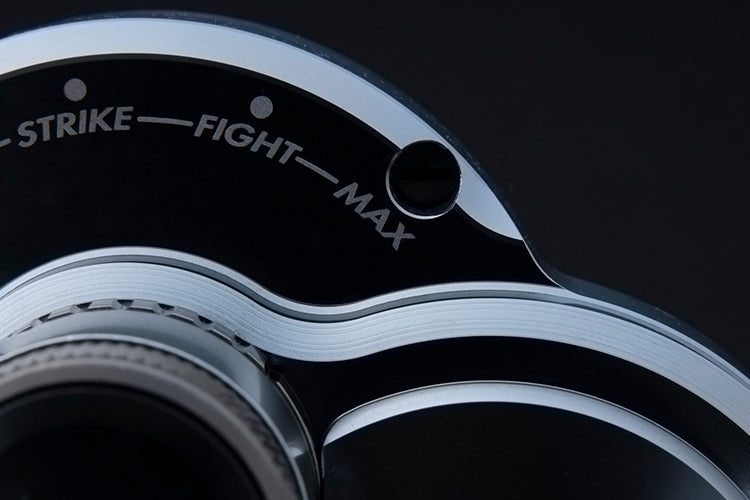

Drag lever

Lever drag design adopted in S2T. The drag lever can be operated with the palming hand while holding the handle.

Super spool free (patent registered)

When spool-free, two small-diameter bearings bearing the spool, and when reeling, the large-diameter ball bearing slides to firmly bearing the spool. A spool-free system that utilizes the characteristics of the lever drag has been adopted to achieve an amazing fall speed comparable to spinning reels.

High-strength aluminum forged machine cut spool

A lightweight spool that has been thinned to the limit while maintaining the strength corresponding to the small diameter line. We have secured PE1.5-1000m with a deep design that draws out the line capacity to the maximum size.

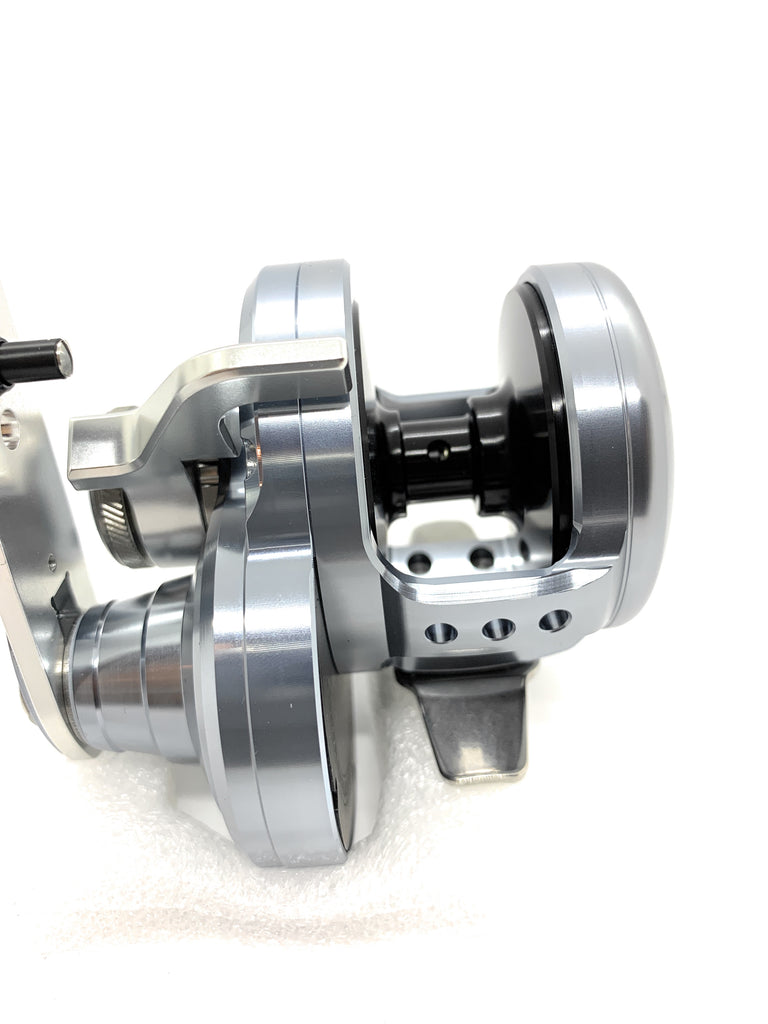

Left-right asymmetric frame (design registered)

The diameter of the right plate that houses the drag mechanism and gears and the diameter of the left plate that emphasizes palming have been changed, and STUDIO Ocean Mark's original left-right asymmetric frame has been adopted as a machine cut reel.

TOUGHNESS

Large caliber mountain module gear

Uses high-strength brass material with extremely high strength. The gear diameter is 50mm and the thickness is 4.8mm, which is larger than the original 50, 48mm.
Although it is manufactured in South Korea, we also provide thorough technical guidance to inherit the quality of the Nagano factory.

New shape aluminum forging machine cut frame

High-strength aluminum material A6061-T6 is forged and machine-cut, and a completely new frame structure greatly improves torsional rigidity.

Extra-thick stainless steel shaft

The handle shaft / knob shaft / spool shaft has the same material / diameter design as the upper model BHL50, and has bearing power that exceeds the class.

Super durable gear box

High-strength one-way bearing

Ultra high performance grease

DRAG

Semi-waterproof drag

Lever drag reels equipped with a waterproof mechanism on the drag part significantly reduce spool-free performance, but BHL30 has devised the shape of the waterproof rubber and drag cover placed on the drag disc to maintain high-performance spool-free and spool. We have developed an epoch-making mechanism that is simple waterproof when free and waterproof when winding.

Carbon drag washer

We have adopted a carbon drag washer with the highest level of smoothness, heat resistance, and durability at the beginning. Alcon Grease has excellent compatibility with low tension settings, and it has super-smooth characteristics in the blackthroat seaperch, which is very popular, and has power comparable to that of large blue objects.

Kilometer set lever

The adjustment range of 1 click is set to about 0.5 kg according to the Japanese sense, and it is set to plus 2 kg in the MAX position.

MAINTENANCE

Spool replacement

Drag washer replacement

One-way bearing replacement

Self Maintenance Guide Video

SPEC

 PRODUCT NAME GEAR RATIO DRAG MAX LINE CAPACITY WEIGHT COLOR

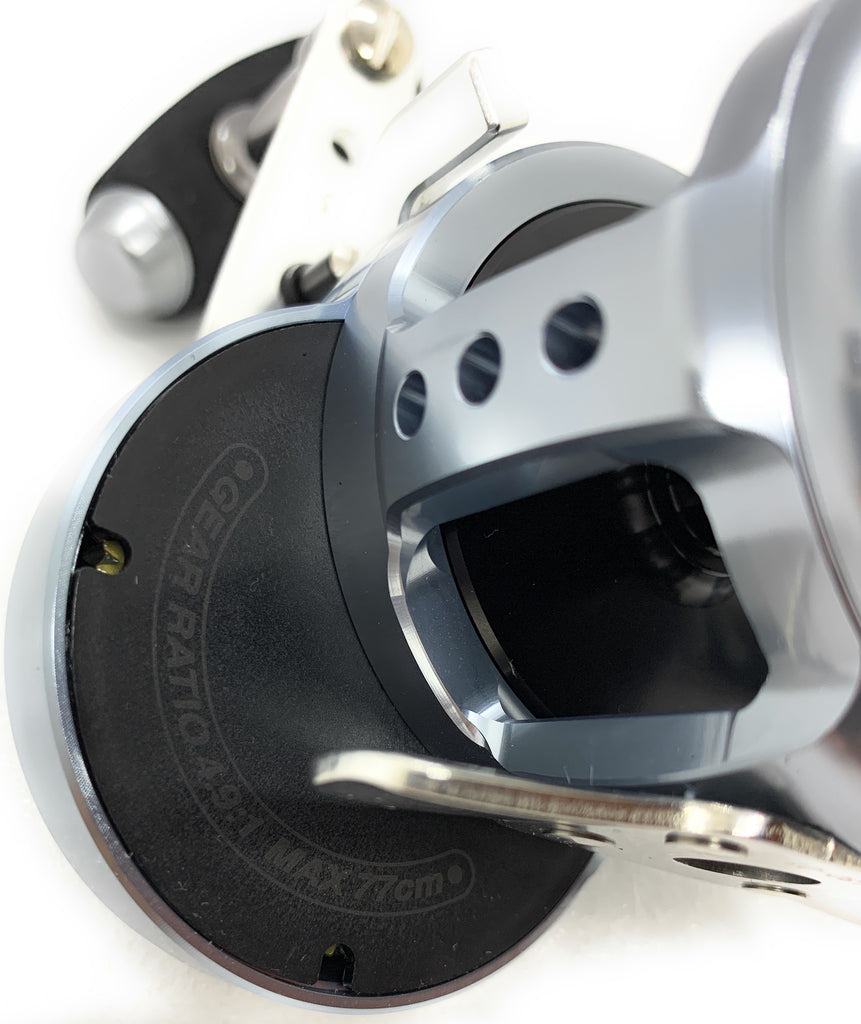

BLUE HEAVEN L30Pw / R-LB (19) AE85 4.9:1 (77cm) 7kg 1.2-1200 (550) m *The numbers in parentheses are
when using the economizer.
410g Light Blue
